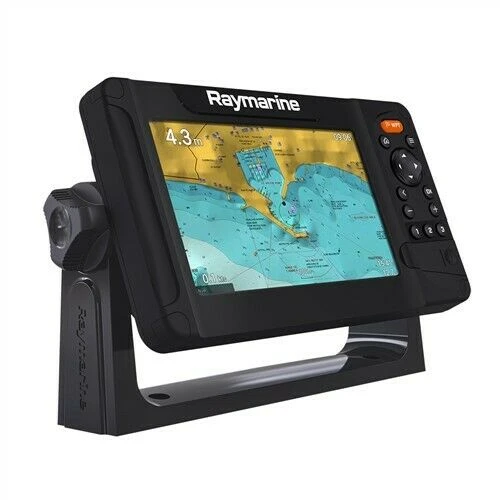

Raymarine Element 7 S GPS Chartplotter Sonar Sounder Fishfinder Unit E70531

The Element S series of navigation displays gives you the freedom to enjoy the open waters. Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful colour. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.

Features

– Category-leading quad-core processor delivers fast chart redraw and responsive performance
– Fast and accurate 10hz GPS/GNSS sensor
– Rugged design and backed by Raymarine’s three-year warranty (product registration required)
– Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
– Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
– Built-in High CHIRP sonar for depth and bottom contour imaging
– Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
– Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
– An oversized waypoint key for quick and easy marking of your favourite locations
– Three user-programmable quick keys to access your favourite pages with one button push
– Live menus let you customize charts while seeing the navigation display change in real time

Box Contents

– Element 7S display
– Surface mount gasket
– Suncover
– Trunnion knobs x2
– Documentation pack
– Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 locking nut)
– Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).

Specifications

– Display Size: 7.0″ Optically Bonded LCD
– Display Resolution: 800 x 480 WVGA
– Product Weight (lbs): 3.0
– Voltage: 12V DC (8V to 16V DC)
– Power Consumption: 15 Watts
– GNSS / GPS Built-in GPS/GLONASS
– Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector.
– Supports CPT-S transom and thru-hull transducers
– Sonar Depth CHIRP Sonar = 274m (900 feet)
– Radar: Quantum wireless CHIRP compatible Wi-Fi only connection
– Doppler Radar N/A
– MARPA N/A
– NMEA2000 1 x NMEA2000 port (DeviceNet microC)
– SeaTalkng Requires A06045 DeviceNet female (F) adapter cable – 400mm
– WiFi: 802.11 b / g / n
– Sonar Mapping: Raymarine RealBathy and Navionics SonarChart Lice
– Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts – 250 wpt max / 15 tracks – 10,000 max trk pts
– External Memory: 1 x microSD slots
– Dimensions: 240 x 135 x 62mm
