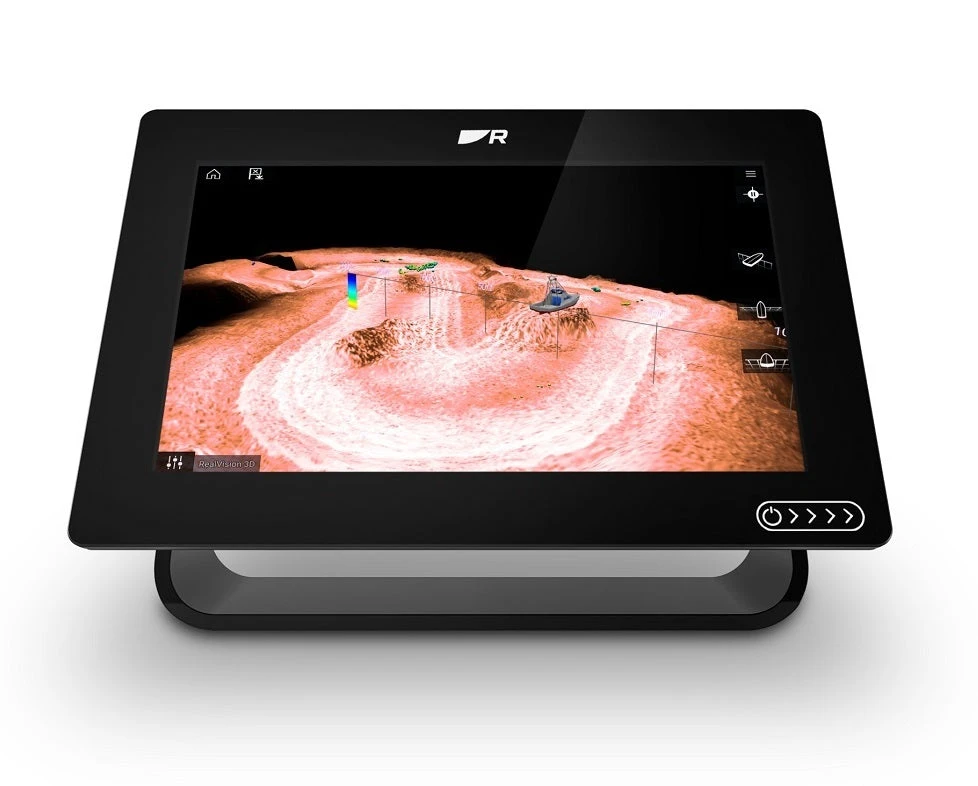

Raymarine Axiom+ Plus 9 MFD 3D RV Sonar Sounder Fishfinder GPS Charplotter Combo Unit With RV 100 Transducer E70637-03

The performance-tuned Axiom®+ is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. (RealVision scanning RV models.) New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition.

Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date. The Raymarine Axiom+ range was designed for speed, performance, and future expansion.

Features

– Navionics and C-Map charts available quickly and easily.
– Smart and intuitive LightHouse 3 OS makes navigating easy.
– Powerful quad-core processor, plus increased onboard storage for personal data and apps.
– ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
– Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning colour.
– Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
– The new 7, 9, and 12 inch displays deliver 25 percent more brightness in any lighting condition.
– IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
– Improved viewing with new LightHouse colour themes, including Day and Night mode.
– Network with multiple Axiom displays, radars, sonar, and more.
– Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

Box Contents

– Multifunction Display
– Trunnion bracket
– Trunnion knobs x 2
– Suncover: Trunnion mount
– Panel mount gasket for surface/flush mounting
– M5x58 Threaded studs x 4
– M5 Thumb nuts x 4
– Documentation pack
– DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
– Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
– Rear mounting brackets
– RV100 Transducer

Specifications

– Display Size: 9.0 inch High Density IPS
– Display Resolution: 1280 x 720 (WXGA)
– Display Type: Multitouch with HydroTough™ rugged hydrophobic coating
– Brightness: 1,500 nits
– Viewing Angle: 85° Top, Bottom, Left, Right
– Dimensions W x H x D (Excluding trunnion and cables): 9.65 x 6.22 x 3.0in
– Mounting Options: Surface, Flush, Trunnion, (Front installation bracket available)
– Waterproof Rating: IPX6 / IPX7
– Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
– Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
– Voltage: 12V DC (8V to 16V DC)
– Power Consumption (Full brightness): 11.98 Watts

– Sensors: GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* – 10Hz 28 Channel *Future software update required
– Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
– Sonar Connections 25pin RealVision™ type connector
– Sonar Depth High CHIRP Sonar = 900 feet (274m)
– DownVision™ = 600 feet (183m)
– SideVision™ = 300 feet (91m)
– RealVision™ 3D = 300 feet (91m)
– External Sonar Option Yes – CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
– Radar Yes – Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
– AIS Yes – NMEA2000 compatible
– Autopilot Control Yes – Evolution Autopilot
– Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500
– Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
– Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
– Digital Switching Yes – Empirbus & C-Zone compatible
– Remote Control Yes Optional RMK-10 (A80438)

– Ethernet 1 x 10/100 Mbit/s Network (RayNet)
– NMEA0183 No
– NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
– SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
– USB 1 x USB microAB
– Wi-Fi WiFi – 802.11 a/b/g/n
– BlueTooth Bluetooth v4.0

– Cartography Lighthouse Charts, Navionics, and C-MAP compatible
– Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts – 250 wpt max / 16 tracks – 10,000 max trk pts

– Internal Memory 16 GB Solid State
– External Memory 1x MicroSD Card Slot
– Australia and New Zealand: C-Tick, Compliance Level 2
