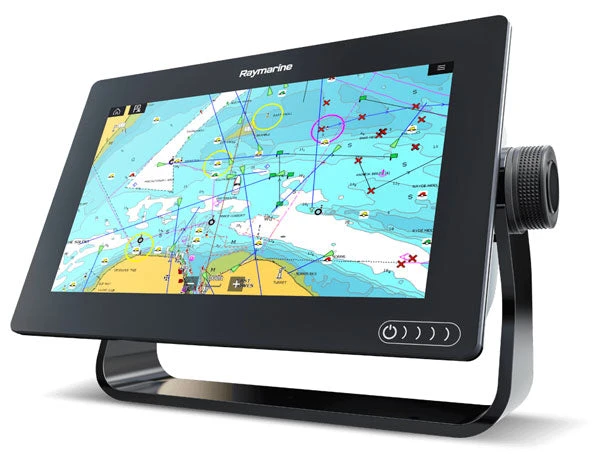

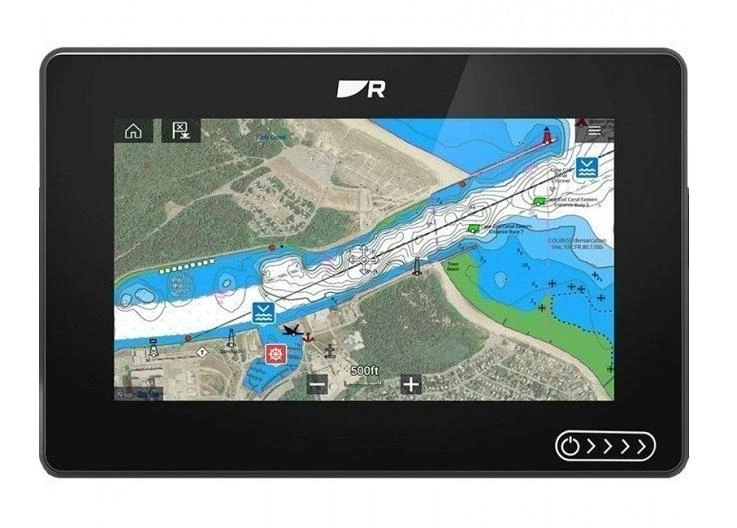

Raymarine Axiom+ Plus 7 MFD 3D RV Sonar Sounder Fishfinder GPS Charplotter Combo Unit E70635

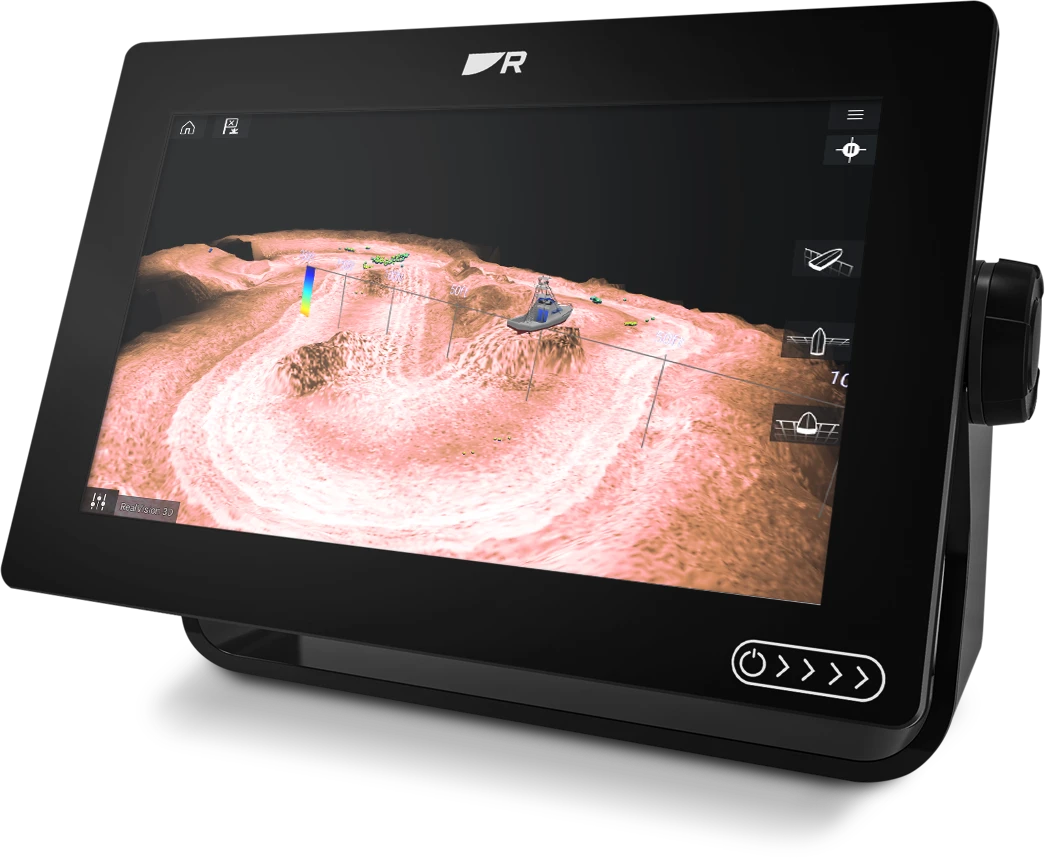

The performance-tuned Axiom®+ is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. (RealVision scanning RV models.) New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition.

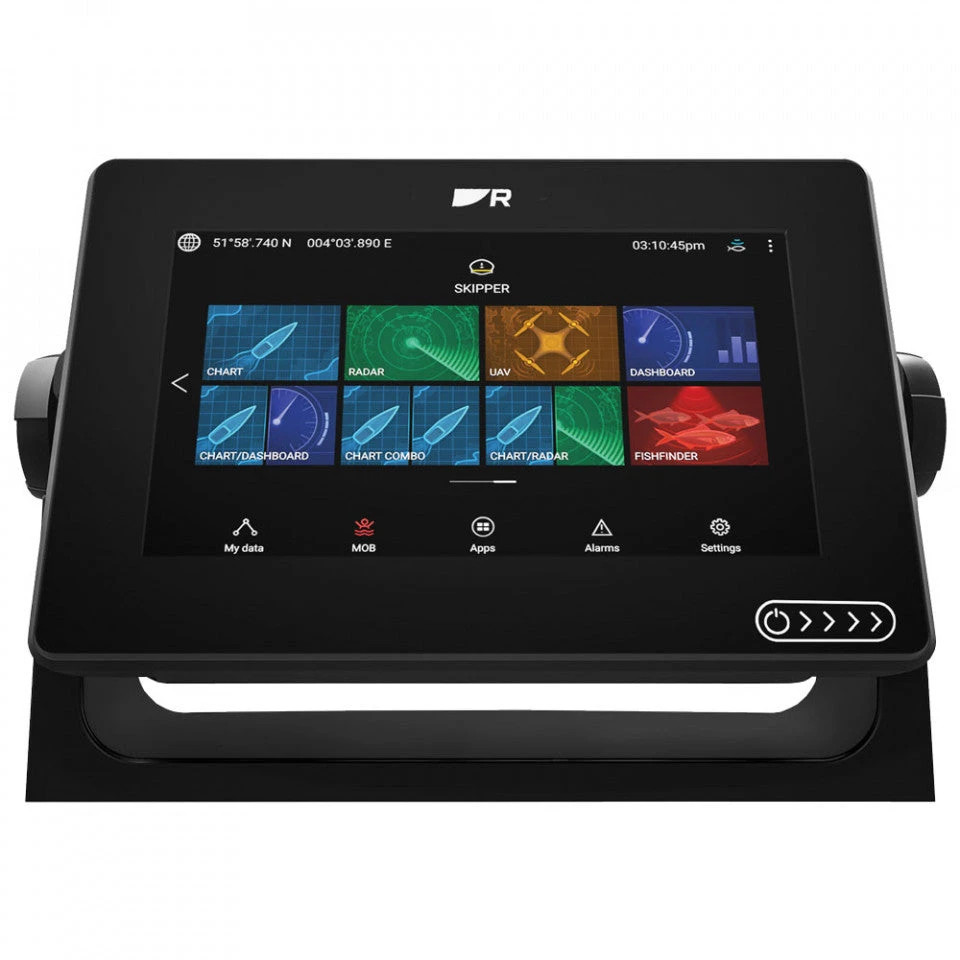

Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date. The Raymarine Axiom+ range was designed for speed, performance, and future expansion.

Features

– Navionics and C-Map charts available quickly and easily.
– Smart and intuitive LightHouse 3 OS makes navigating easy.
– Powerful quad-core processor, plus increased onboard storage for personal data and apps.
– ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
– Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning colour.
– Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
– The new 7, 9, and 12 inch displays deliver 25 percent more brightness in any lighting condition.
– IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
– Improved viewing with new LightHouse colour themes, including Day and Night mode.
– Network with multiple Axiom displays, radars, sonar, and more.
– Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

Box Contents

– Axiom+ 7 MFD with Trunnion adaptor fitted
– Trunnion bracket
– 2 x Trunnion knobs
– Suncover – Trunnion mount
– Panel mount gasket for surface/flush mounting
– 4 x M5x58 Threaded studs
– 4 x M5 Thumb nuts
– Documentation pack
– 120mm DeviceNet to SeaTalkng adaptor cable
– 1.5m/0.5m Power/NMEA 2000 cable

Specifications

– Physical Dimensions: 210mmW x 142mmH x 77mmD
– Screen Size: 7″
– Display Resolution: 1024W x 600V pixels
– Screen Brightness: 1500 nits
– Processor: Quad-Core
– IPX Water Rating: IPX7
– Voltage: 12vDC
– Wattage: 9.84W
– Transmit Power: 600W RMS
– Ethernet Ports for multiple screens: 1 Port
– NMEA2000 Compatibility: Yes
– Video Input Ports: Non standard. Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) via RayNet
– Mounting Options: Bracket, Flush or Surface Mount
– WiFi Connectivity: Built-in
– Expansion Card: Slot 1 x microSD
– Waypoints: 10,000
– Routes: 150
– Track Log: 16 tracks with up to 10,000 points
– Sonar Compatible: Yes
– Supports AIS (tracks target ships position): Yes
– Tide Tables (from map card option): Yes
– Autopilot Compatible: Yes
– Audio System Compatible: Yes
– Radar Compatible: Yes
– Chirp Sonar: Yes
– Operating Frequency: High CHIRP, DownVision, RealVision 3D 1.2MHz, SideVision
– Down Imaging (Transducer Dependant): Yes
– Useable Depth Down Imgaging: 100m+
– Sonar Useable Depth (T/D & Frequency Dependant): 120m+
– Side Imaging (Transducer Dependant): Yes
– Sonar Track Back: Yes
– Output Power: RMS 600W
– Water Temperature: Yes
