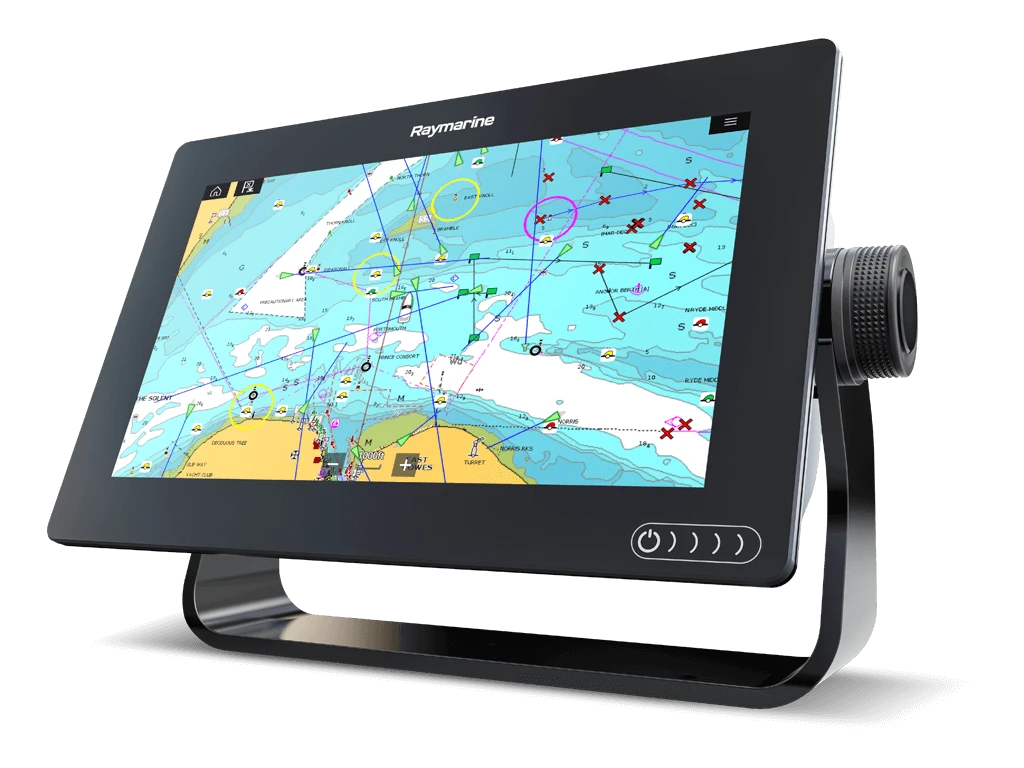

Raymarine Axiom 12RV Sonar GPS With RV100 Transducer – E70369-03-AUS

Raymarine Axiom 12 RealVision 3D Multifunction Display is a powerful new navigation system, delivering exceptional fish-finding performance. Complete with built-in RealVision 3D Sonar, all new LightHouse 3 operating system and fast quad core processor, Axiom puts you in complete control.

RealVision 3D is an all-in-one transducer that combines CHIRP DownVision, SideVision, High Frequency CHIRP, and RealVision 3D – giving you the ability to see what’s below, behind, and to the sides of the boat, all at once and in 3D. You can pan, tilt and zoom the 3D image to examine from any angle. Additionally, Raymarine’s gyro-stabilised Sonar technology compensates for boat movement.

The new LightHouse 3 OS delivers an intuitive and powerful navigation experience through a redesigned interface that is quick to learn and easy to personalise. Its LiveView Menu Controls allow users to easily customise the chart and see the navigation display changes in real time.data.

Axiom is expandable, so its capabilities can grow as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

Features

– Display: 12″ LCD screen (1,200 nits) with optical bonding technology for sharper colours and contrast
– Power: 12vDC
– IPX7 waterproof rating
– 4GB solid state internal memory
– AIS capability
– Built-in GNSS Receiver: GPS/GLONASS (10Hz 72 Channel for rapid position updates and smooth on screen tracking)
– RS150 external GPS sensor option
– Built-in 600W Digital Sonar
– LightHouse 3 OS
– Usable Depth: 274m CHIRP, 150m+ DownVision
– WiFi: Ethernet: Bluetooth: Radar capable
– 10,000 Waypoints with 150 routes
– 10,000 max track points with 16 tracks
– NMEA 0183 and NMEA 2000 compatible
– SeaTalk compatible – requires A06045 DeviceNet female adapter cable
– 1 video input, up to 10 IP cameras
– 1 MicroSD slot – up to 32GB

Specifications

– Display Size: 12.1″ IPS Optically Bonded LCD
– Display Resolution: 1280 x 800 WXGA (HD) IPS
– Display Type: Multitouch
– Brightness: 1,200 nits
– Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
– Dimensions: 314 x 217 x 77mm (12.36″ x 8.54″ x 3.00″)
– Weight: 2.84kg (6.25lbs)
– Mounting: Top, Flush, Front, Bracket
– Waterproof Rating: IPX6 / IPX7
– Operating Temperature: -25deg C to +55deg C (-13deg F to 131deg F)
– Storage Temp: -30deg C to +70deg C (- 22deg F to 158deg F)
– Voltage: 12V DC (8 V to 16 VDC)
– Power Consumption (Max @ 12V DC): Chartplotter – RV – 18.96 Watts
– Note: Power consumption figures for DV variants were taken using a CPT-100DVS transducer and RV variants using an RV-100 transducer
