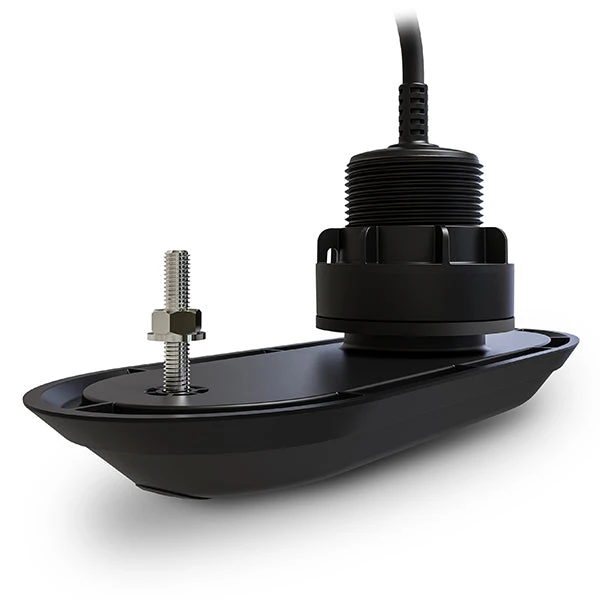

Raymarine All-In-One 0° Through Hull Transducer – RV-300

Raymarine’s RV-300 All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-300 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-300 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You’ll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-300 also has a built-in fast response water temperature sensor for quick, accurate readings.

The RV-300 features a rugged plastic through hull body suitable for fiberglass, steel or aluminium hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-300 works great on trailered boats too and with no fairing block to cut, installation is a breeze.

What’s in the Box? RV-300 All-In-One Through Hull Transducer with 8-meter (26-foot cable) + Anti-rotation bolt kit + Installation instructions

Features

– Rugged plastic through hull body suitable for fiberglass, steel or aluminum hulls
– Low-profile design slips effortlessly through the water without causing drag or cavitation
– DownVision, SideVision and RealVision 3D
– 4 Channel, Wide Spectrum CHIRP
– Built-In Temp Sensor
– Internal AHRS Stabilizes Sonar Images
– Designed for FlatBottom Boats with a Deadrise of 0-5 Degrees

Specifications

– Max Depth (Ft) 3D: 300 | DownVision: 600 | Port: 300 | Starboard: 300 | Conical: 900
– Beam Width (L/H) 3D: 180° | Down: 60° | Conical: 25°
– Supported Deadrise / Transom Angles: 0-5° Dead rise
