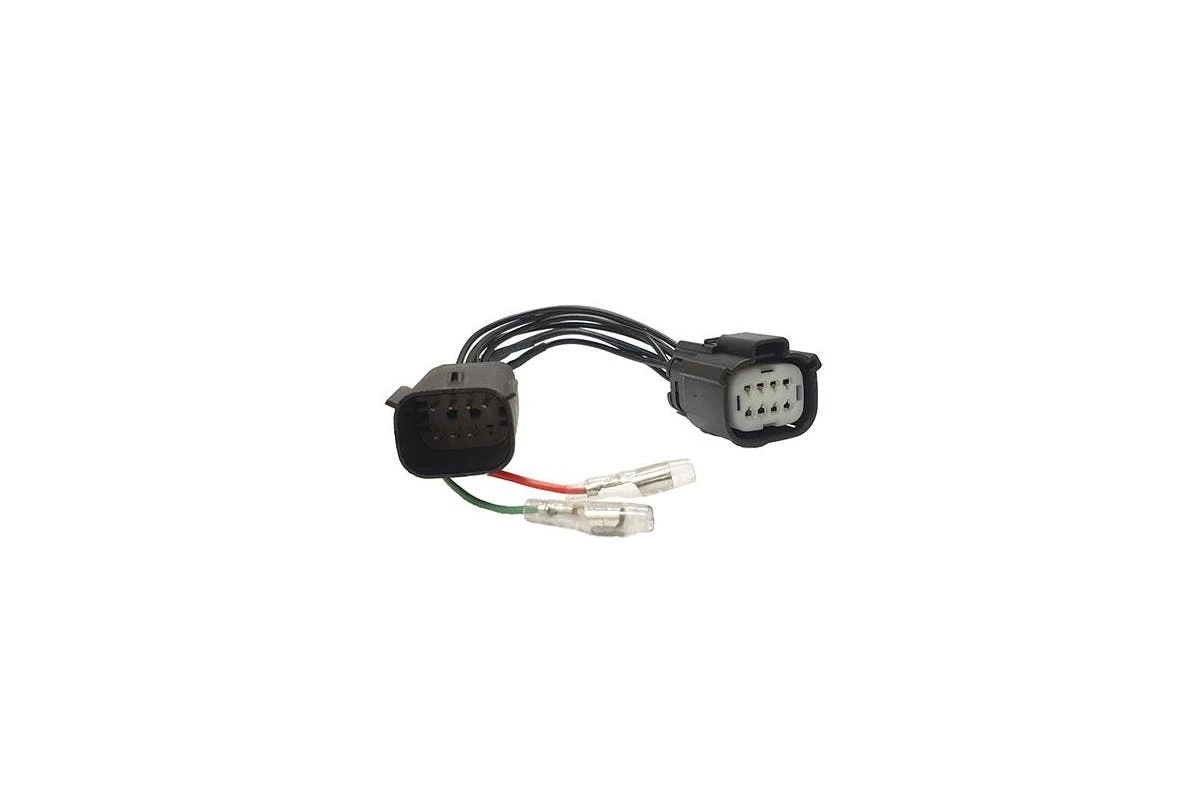

Lightforce Patch Harness Ford Ranger – CB8PIN

These connectors are suitable for use with the Ford Ranger PX Mk 2 , PX3, Raptor and Everest models allowing for easy plug and play integrate into the existing factory 8 pin headlight connector that are located on the lower back of each side of the vehicles headlight assemblies.

Uses the recommended high beam connection point as highlighted in the Body and Equipment Mounting Manual.

 Features

– Easy to Install

– Fits Ranger or Everest

Specifications

These connectors have been made to integrate into the existing factory eight pin headlight connector that is located on the lower back of each of the vehicle’s headlight assemblies. It uses the recommended connection point as highlighted in the Body and Equipment Mounting Manual.

– Remove the existing factory eight pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector
– Fit the corresponding new connector to the connector that has just been removed until it clicks into place
– Fit the remaining new connector to the original connector affixed to the headlight assembly until it clicks into place.
