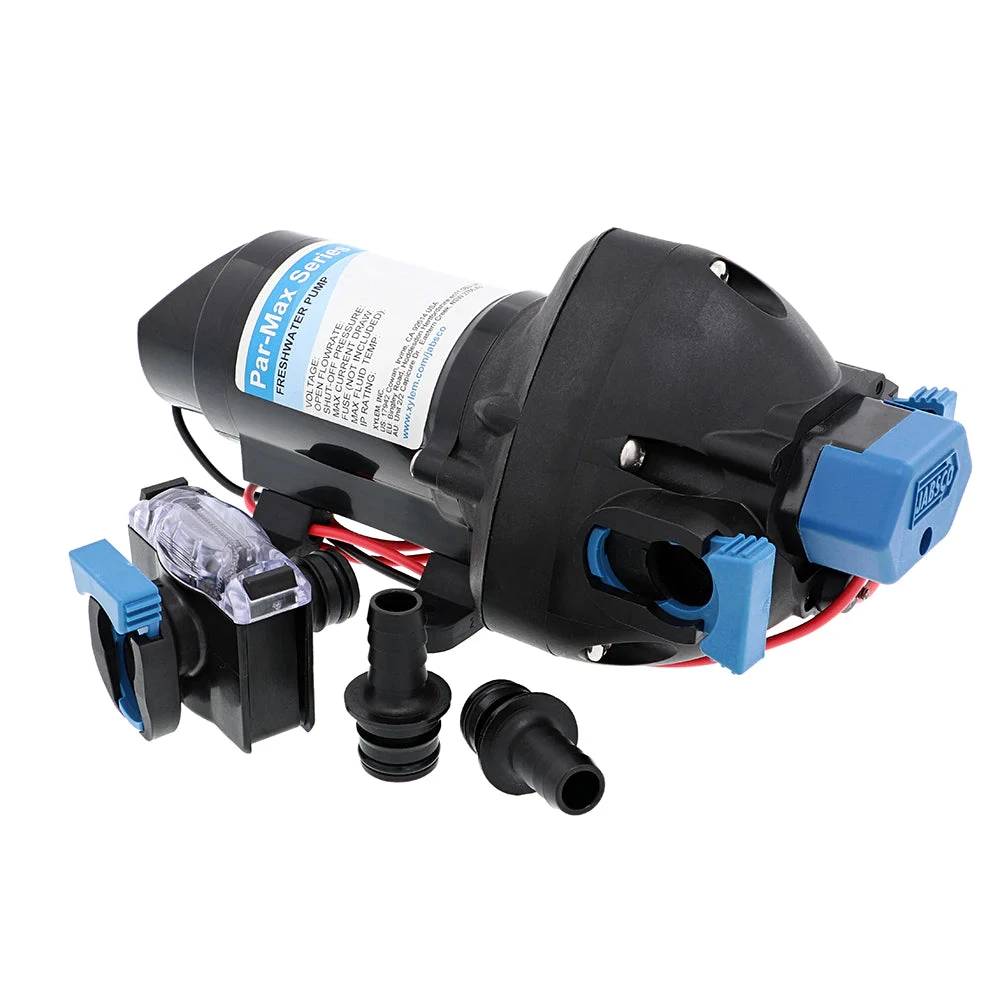

Jabsco J20-202 Par Max 3.0 Heavy Duty 12V 40PSI Water Pump

Jabsco’s most popular freshwater pressure pump is ideal for providing freshwater automatically on vessels up to approximately the 9 metre range. It now includes a 40 mesh plug-in inlet strainer with the pump.

The triplex chamber automatic pressure pump gives up to 11.3 litres per minute (3 US Gallons per minute) with pressure up to 40PSI. It can service up to 3 x 12mm outlets including the galley, shower and an additional faucet. The Par-max 3.0 gives very smooth water flow even at low demand due to its built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise.

Features

– Co-moulded diaphragm technology for long life and durability
– Efficient and quiet operation
– Integrated, sealed pressure switch for on-demand operation
– Self-priming allows for installation versatility
– Can run dry without damage
– Quick connect ports for ease of installation, servicing, and maintenance
– Vibration dampening mounting feet
– Equipped with integrated bypass module to reduce cycling and provide smoother flow
– HD models feature heavy duty, motors and cast aluminium lower housings which allow for longlife, even at high pressures

Specifications

– Model: J20-202 (31395-4012-3A)
– 12 volt
– 11.3 litres per minute at 40PSI
– Self-primes to 2.4metres (8feet)
– 25PSI cut in, 40PSI cut-out pressure
– Can be run dry for periods
– No need for an accumulator

Includes

– Inlet filter
– Corrosion resistant motor
– Soft rubber vibration dampening mounts
– Quick connect plug-in hose ports 2 x 12mm barbed for hose
