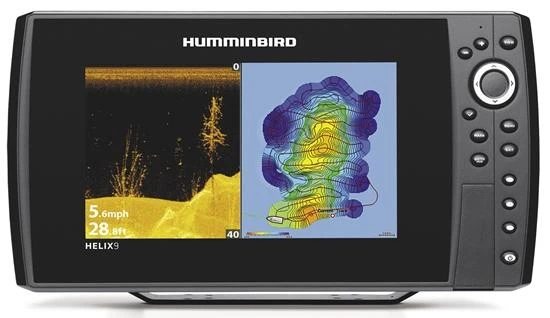

Humminbird Helix 9 Gen 3 G3N MDI+ GPS Chartplotter Sonar Sounder Fishfinder 104574

– Fully authorised Humminbird Australia Pro Store
– Expert advice on these units available 24/7
– MPN: 104574

The Humminbird Helix 9 CHIRP MDI GPS Gen 3 has all the same specifications and features as the CHIRP GPS sonar but it also features the amazing technology of Down Imaging. Using the additional 455/800kHz frequency as well as the 200/455kHz standard dual beam you will get a fish-eye’s view of what’s happening below your boat. These incredible images are created with high frequency sound waves emitted in ultra-thin slices. The sonar returns from these waves produce a “portrait.” As you patrol the water, you’ll watch fish, reefs, timber, brush, bridge pilings, rocks, and any other structure or with stunning detail. DI will read down to about 100m and the standard dual beam will read to 180m.

Features

– NEW MEGA Down Imaging+: Get unprecedented underwater clarity with coverage down to 200 feet below your boat. You’ll unlock more fish and structure with 20% more detail than MEGA Down Imaging Sonar.

– Dual Spectrum CHIRP: Before you cast, know what’s down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.

– SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations – all at the push of a button.

– Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.

– AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.

– Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.

– Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).

– LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges and adjustable water levels, you’ll have all the tools you need to make every moment count.

– Includes transducer and mounting hardware, power cable, gimbal mounting bracket and unit cover.

Specifications

Series: HELIX

Display Size – Diagonal 9″

Display Pixel Matrix 1024H x 600V

Sonar-Standard Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+

Sonar-Optional 50 kHz, 50/Low Airmar CHIRP

CHIRP – Frequencies Supported Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)

Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz

Depth-Sonar 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)

CHIRP – Imaging-Frequencies Supported 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)

Depth-Down Imaging 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)

Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)

Interface Keypad Control

Memory Card Slot Dual Micro SD

Power Draw 1 Amp

Power Input 10.8-20 VDC

Power Output Peak-to-Peak 8000 Watts

Power Output RMS 1000 Watts

Screen Snap Shot Included

Sonar Recording Included

Mount-Standard Gimbal

Mount-Standard Size 12.00” W x 7.0” H x 4.13” D

Mount-Optional In-Dash Mounting Kit

Mount-Optional Size 12.00” W x 6.63” H x 1.32” D

Transducer Included XM 9 HW MSI T

Transducer Mount Location Transom

GPS Chartplotting Included

GPS Receiver Internal

GPS Trackplotting Included

Waypoints, Routes, Tracks/Points 2,750, 45, 50/20,000

360 Imaging Compatibility Yes

Humminbird Basemap Included

LakeMaster Compatibility Yes

Minn Kota i-Pilot Link Compatibility Yes

Minn Kota Talon Shallow Water Anchor Compatibility Yes

Navionics Gold/HotMaps Compatibility Yes

Navionics Platinum + Compatibility Yes

Platinum Compatibility Yes

Radar Compatibility Yes

5-Port Ethernet Switch Compatibility Yes

AIS Compatibility Optional

Heading Sensor GPS Compatibility Yes

NMEA2000 Optional

Target Separation 2.5″

Upgradable Software Yes

View Preset Keys Yes

X-Press Menu System Yes

Custom Digital Readout Yes

Custom View Selections Yes

Display Colors Grayscale 16-Bit

Display Type Color TFT

Temperature Built In

Temperature Alarm Yes

Temperature Graph Yes
