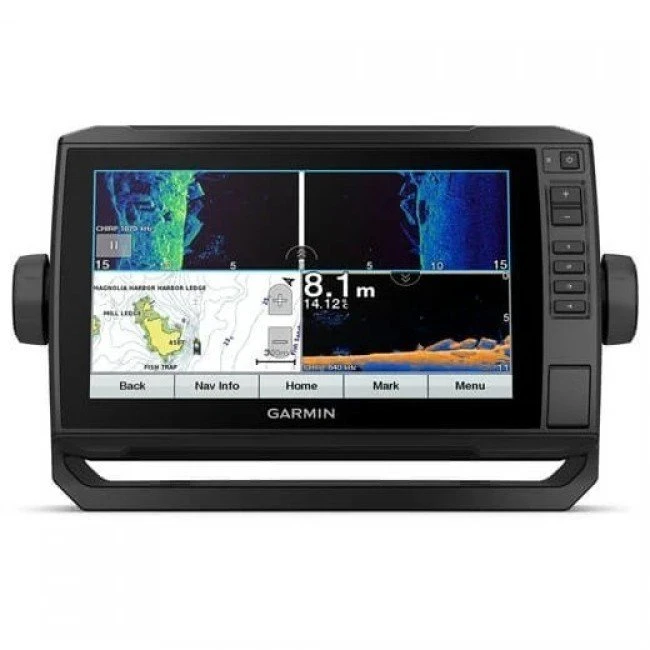

Garmin Echomap UHD 95sv GPS Chartplotter And Sonar Sounder Fishfinder With GT56UHD-TM Transducer 010-02525-20

Garmin EchoMap 95sv UHD Combo features Ultra High-Definition ClearVu Sonar, SideVu imaging as well as CHIRP traditional Sonar to make your fishing easier, with an all-round view beneath the water.

Features

– 9″ WVGA touch-screen display; 800 x 400 resolution
– IPX7 waterproof protection
– Ultra High-Definition ClearVu sonar
– CHIRP traditional sonar
– Built-in Wi-Fi to connect to ActiveCaptain app for access to OneChart
– Power Consumption: 18w
– Transmit Power: 500w rms / 4000w (peak to peak)
– 100 routes and 50,000 waypoints
– Quickdraw Contours allows for easy mapping of your own routes and regular points of interest
– Garmin Panoptix Port
– 1 x microSD card (32GB max card size)
– Preloaded with Bluechart g3 mapping
– Internal 5Hz GPS/GLONASS Receiver refreshes position and Heading 10 times/second, resulting in a fluid and constant on screen location for navigating and making waypoints
– NMEA 2000 – connect to autopilots, digital switching, weather, Fusion-Link audio, VHF, AIS and more

Specifications

– Model: 010-02525-20
– Dimensions: 282mmW x 164mmH x 60mmD
– Screen Size: 9″
– Display Resolution: 800W x 400V pixels
– Wattage: 18W
– WiFi Connectivity: Builtin
– NMEA0183 Compatibility: Yes
– NMEA2000 Compatibility: Yes
– Mounting Options: Bracket Mount and Flush Mount
– WiFi Connectivity: Built-in
– Expansion Card Slot: 1 x microSD
– Chirp Sonar: Yes
– Operating Frequency: 50KHz, 77KHz, ClearVu CHIRP 260/455kHz, SideVu CHIRP 455/800kHz, 200KHz, CHIRP 150-240KHz
– Side Imaging (Transducer Dependant): Yes
– Output Power: RMS 500W
